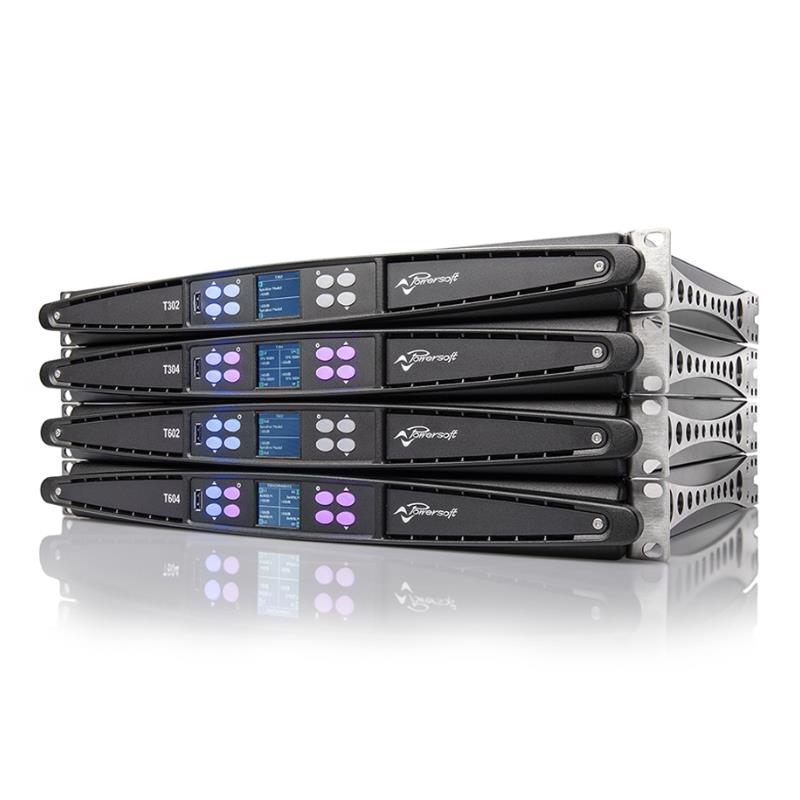

Drawing on decades of experience in the design an manufacturing of highly efficient and powerful amplifiers, Powersoft present the new T series.
The T302 is a very flexible and cost effective 2 channel amplifier platform loudspeaker processor. It features advanced DSP and protections systems, multiple input options and high quality digital converters.
All models in this T Series from Powersoft deliver the same high peak voltage allowing high SPL with single 8/16 ohm cabinets. The high voltage is also good for sharing power between the channels for applications such as bi-amped loudspeakers or subwoofers with passive tops.
This amplifier features input via Dante, AES3 and analog. The Dante and AES3 solutions are optimized for daisy-chained distribution of 2-channel audio for distribution to many amplifiers without the need for external switches/repeaters/ splitters. A simple Dante system has a daisy chain with the mixing console at one end and a WiFi access point at the other end and the amplifiers in-between.
- The loudspeaker processing sets a new benchmark for cost-effective amplification for small and medium sized systems and stage monitors.
- Full control with a PC running Armonía where it can be in mixed groups with advanced EQ together with other Powersoft products.
- Control from the front panel display for preset recall (also per output), gain, delay, mute. This makes it very easy to use for small systems in a rental company. The display also shows the available headroom with easy to read numbers in dB as well as other status monitoring.
- Web app. Use any device with a browser (e.g. a tablet) and access the amplifier via an external WiFi access point to control EQ etc.
- Group controllable advanced EQ with raised cosine filters
- Large preset library
- Preset compatibility with X Series
- Very long FIR filters (42.6 ms)
- Control and monitoring through ArmoníaPlus
Specifications
| General | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of channels | 2 | ||||||||||||||
| Output power | Single channel mode | Bridge mode | |||||||||||||
| 2 Ω | 4 Ω | 8 Ω | 4 Ω | 8 Ω | |||||||||||
| 1500 W | 1500 W | 1200 W | 3000W | 3000W | |||||||||||
| Max output voltage / current | 145 Vpeak / 50 Apeak | ||||||||||||||
| AC Main Power | |||||||||||||||
| Power supply | Universal, regulated switch mode | ||||||||||||||
| Nominal power requirement | 100-240 V ±10%, 50-60 Hz | ||||||||||||||
| Operating voltage | 90 V – 264 V | ||||||||||||||
| Power consuption** | 115 V | 230 V | |||||||||||||
| Idle | 23 W | 23 W | |||||||||||||
| 1/8 of max output power @ 4 Ω | 517 W | 4.6 A | 527 W | 2.7 A | |||||||||||
| Thermal | |||||||||||||||
| Operating temperature range | 0° – 45° C – 32° – 113° F | ||||||||||||||
| Thermal dissipation** | 115 V | 230 V | |||||||||||||
| 1/8 of max output power @ 4 Ω | 485 BTU/h | 122.2 kcal/h | 517 BTU/h | 130.3 kcal/h | |||||||||||
| AUDIO | |||||||||||||||
| |||||||||||||||
| Frequency response | 20 Hz – 20 kHz (±0.5 dB) @ 1 W, 8 Ω | ||||||||||||||
| S/N ratio | > 110 dB (20 Hz – 20 kHz, A weighted) | ||||||||||||||
| Crosstalk separation | < -70 dB @ 1kHz | ||||||||||||||
| THD+N | < 0.1% (typical < 0.5%) | ||||||||||||||
| IMD | < 0.1% (typical < 0.5%) | ||||||||||||||
| Input impedance | 20 kΩ balanced | ||||||||||||||
| DSP | |||||||||||||||
| AD Converter | 24 Bit Tandem™ @ 48 kHz 125 dB-A Dynamic Range – 0.005 % THD+N | ||||||||||||||
| DA Converter | 24 Bit Tandem™ @ 48 kHz 117 dB-A Dynamic Range – 0.003 % THD+N | ||||||||||||||
| Memory/presets | 256 MB (RAM) plus 512 MB flash for presets / | ||||||||||||||
| Input equalizer | Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass | ||||||||||||||
| Crossover | linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR) | ||||||||||||||
| Delay | 2 s (input) + 100 ms (output) for time alignment | ||||||||||||||
| Limiters | TruePower™, RMS voltage, RMS current, Peak limiter | ||||||||||||||
| Damping control | Active DampingControl™ and LiveImpedance™ measurement | ||||||||||||||
| Front panel | |||||||||||||||
| Indicators and Controllers | 8 x Push-button – Setting operating parameters 1 x Display – Settings and monitoring 1 x Power switch – | ||||||||||||||
| Connectors | |||||||||||||||
| AC main | 1 x IEC C20 connector – 20 A max (region-specific power cord provided) | ||||||||||||||
| Audio signal input | 2 x XLR – Signal input | ||||||||||||||
| Loudspeakers | 2 x speakON – Neutrik NL4MD | ||||||||||||||
| Network/data | 1 x Rj45 socket – RS485 data connection (non-DSP version) 1 x Rj45 socket – DANTE® | ||||||||||||||
| Construction | |||||||||||||||
| Dimensions (L x H x W) | 484 mm x 44.45 mm x 405 mm (19.1 in x 1.8 in x 16.0 in) | ||||||||||||||
| Weight | 6.7 kg (14.8 lb) | ||||||||||||||
* Data is subject to change without notice.
