Specifications
General

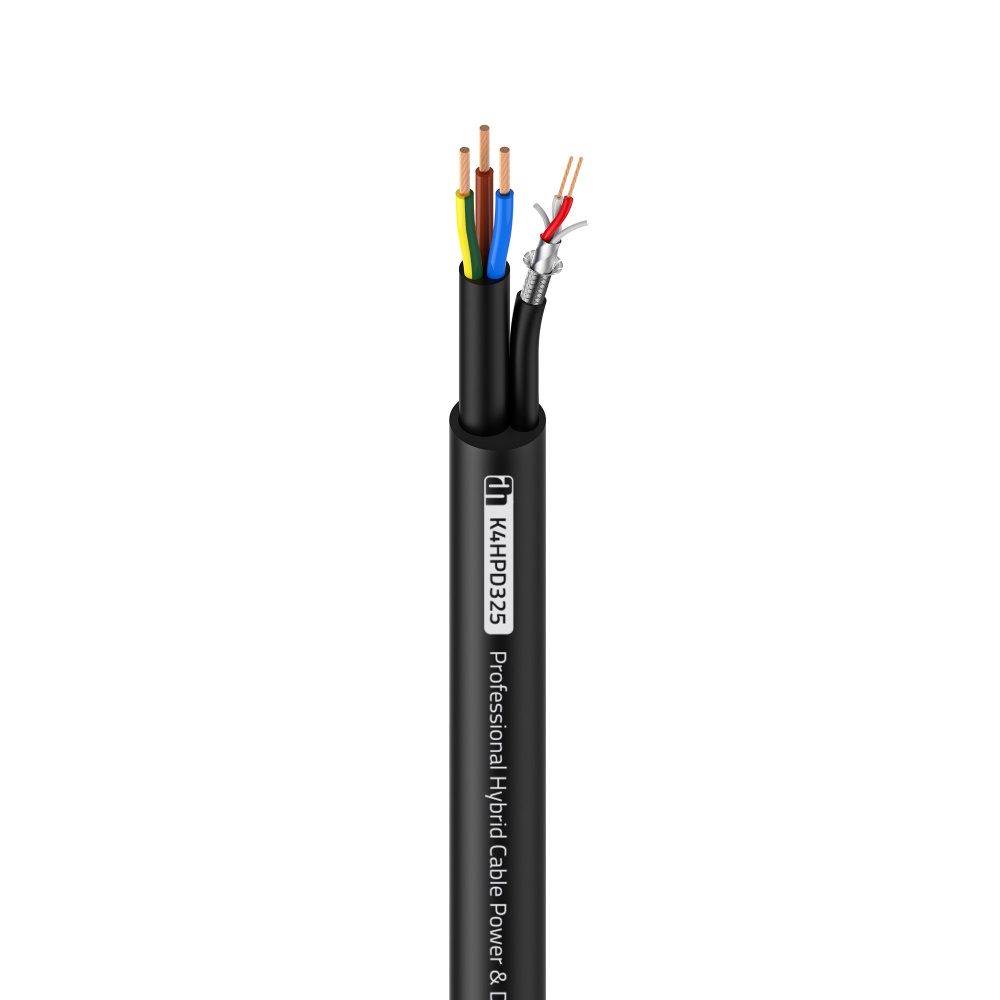

Product type: Bulk Cable
Type: Power / Signal Cable
Color: Black
Overall diameter: 17 mm
Jacket material: PVC
Temperature range: -20 – 70 °C
Weight: 0,4 kg
Power
Diameter: 10 mm
AWG: 14
Number of internal conductors: 3
Center conductor cross section: 2.5 mm²
Center conductor construction: 96 x 0.10 mm
Center conductor material: OFC
DMX
Diameter 2: 5 mm
AWG 2: 24
Number of inner conductors 2: 2
Center conductor cross section 2:L 0.22 mm²
Center conductor construction 2: 7 x 0.20 mm
Center conductor material 2: OFC
Shield: Aluminium foil, Copper spiral coil shield
Conductor resistance 2: 85 ohm/km
Capacitance: 55 pF/m
