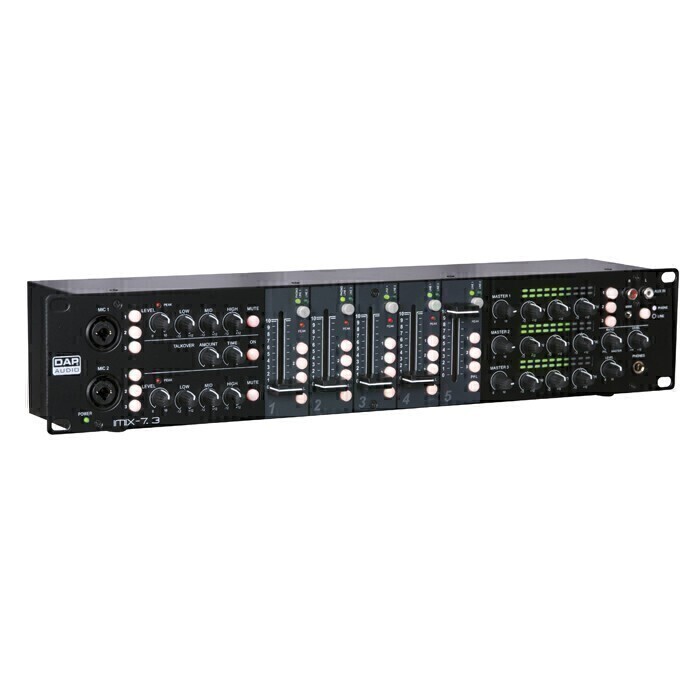

The IMIX-7.3 is a compact installation mixer with zone control. It has exact the same functionality as the IMIX-7.1 but each input on the IMIX-7.3 can be routed to the desired output. This function makes it possible to control 3 areas with different music, sound level and EQ settings.
Specifications
Input channels: 2 x Microphone, combo XLR/Jack
11 x Line, RCA
2 x Phono, RCA
1 x Phone, 3,5mm jack
Output channels: 3 x Master Balanced, XLR
1 x REC output, RCA
1 x Headphones, 6.3mm Jack
Master EQ: 80Hz, 1KHz, 12KHz, -12dB / +12dB
Mic EQ: 80Hz, 1KHz, 12KHz, -12dB / +12dB
Frequency response: 20Hz – 20Khz
T.H.D.: <0.05%
Dimensions: 481 x 88 x 95 mm (LxHxD)
Powersupply: 230V AC, 50Hz
Powerconsumption: 21Watt
Weight: 2,8 Kg
