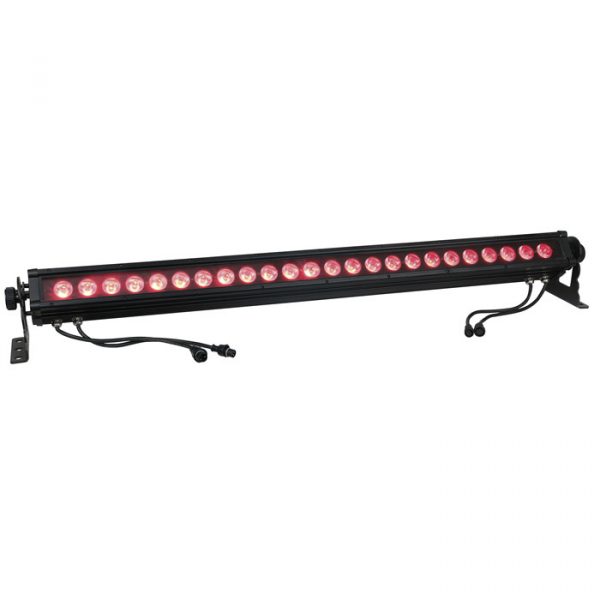

Showtec Cameleon Bar 24/3 Outdoor/Indoor

485.00

  • Powerful 24 x 3 W RGB LED Flood
  • Silent, fanless operations
  • IP65 (dust and water resistant, fit for outdoor use)
  • Multivoltage power supply
  • 40° fixed beam angle
The Showtec Cameleon Bar 24/3 is a powerful 24 x 3 watt LED Bar with silent, fanless operations and IP65 rating, suitable for indoor and outdoor applications. It has a wide 40° fixed beam angle and features 0-100 % dimmer and 0-20 Hz strobe effects, perfectly suitable for colour mixing on stage. The Cameleon Bar 24/3 can be controlled manually, via DMX and Master/Slave in either Manual and Auto run mode with many available built-in programs. It comes with a dedicated IP65 power connector and bracket.

Specifications

Source
Light Source Type:  LED
Light Source Quantity:  24
Light Source Power:  3 W
LED Colour Type:  RGB
Drive Current:  3.5 A
Refresh Rate:  7800 Hz
Lux @ 2m:  3180 lx
Lumen Total:  3180 lm
Lumen Red:  730 lm
Lumen Green:  1135 lm
Lumen Blue:  1435 lm
Optical
Beam Angle Horizontal:  40 °
Beam Angle Vertical:  40 °
Control and Programming
Control Mode:  Auto, DMX, Master Slave
DMX Channels:  3, 5
Protocols:  DMX
Display:  7-segment
Dynamic Effects
Dimmer:  0-100 %
Strobe:  0-20 Hz
Electrical Specifications and Connections
Power Supply:  00-240 VAC 50-60 Hz
Power Consumption:  80 W
Power Connector in:  Dedicated IP65 Powerconnection
Power Connector out:  Dedicated IP65 Powerconnection
DMX Connector:  Dedicated 3P IP65 In/Out
DMX Connector in:  Dedicated 3P IP65
DMX Connector out:  Dedicated 3P IP65
Mechanical Specifications
Length (mm):  1025 mm
Width (mm):  88 mm
Height (mm):  77 mm
Weight:  6,7 kg
IP Rating:  IP65
Housing:  Aluminum die-cast
Colour:  Black
Product Properties
Cooling:  Convection
Rigging
Mounting Options:  Bracket
Safety Attachment:  Yes
Thermal Specifications
Maximum Ambient Temperature:  40 °C
Maximum Surface Temperature:  80 °C
Minimum Operating Temperature:  0 °C
Certifications/Qualifications
Reference Standard:  CE
Included Items
Included Cables:  Dedicated IP65 Powerconnection
Included Accessories:  User Manual
Included Rigging:  Bracket
