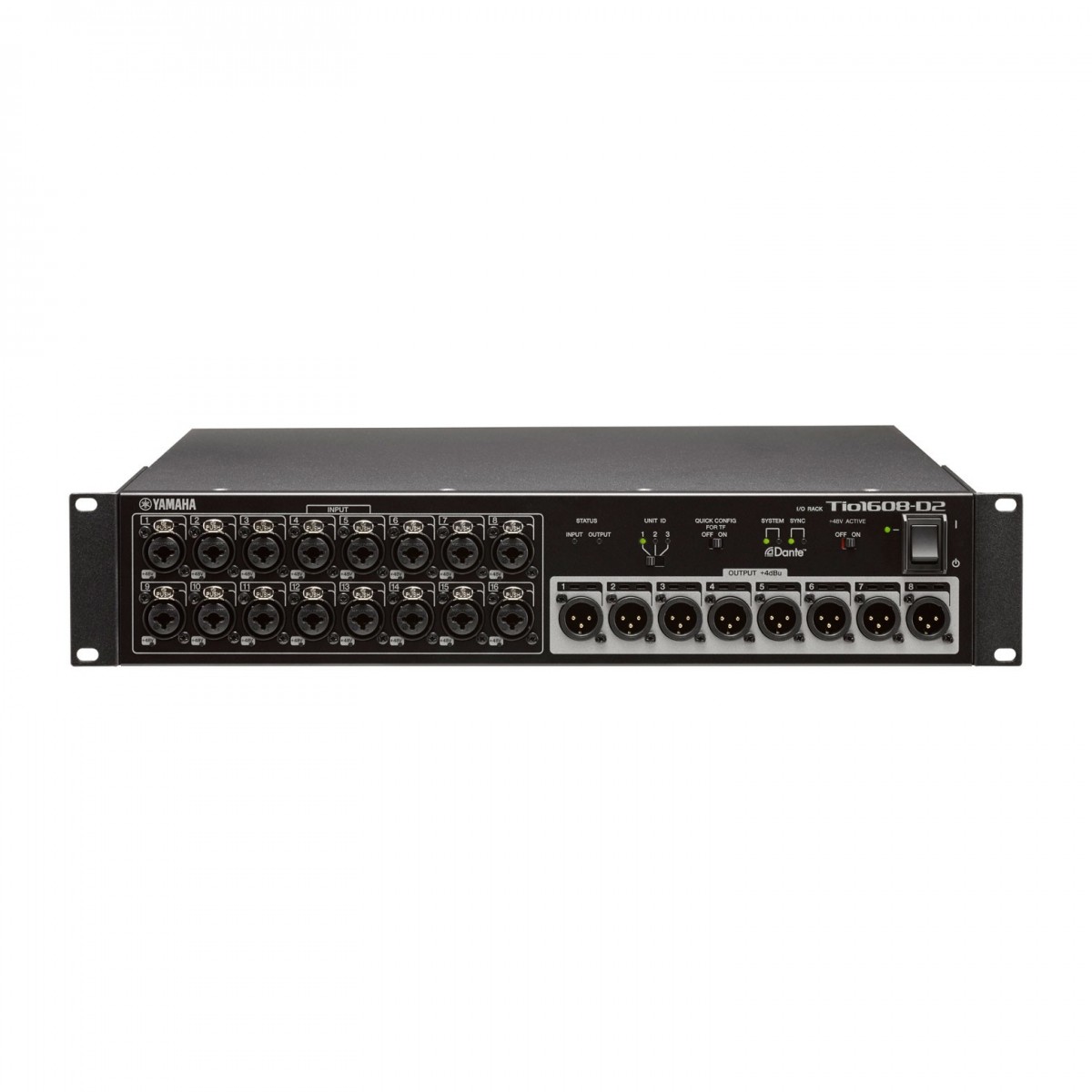

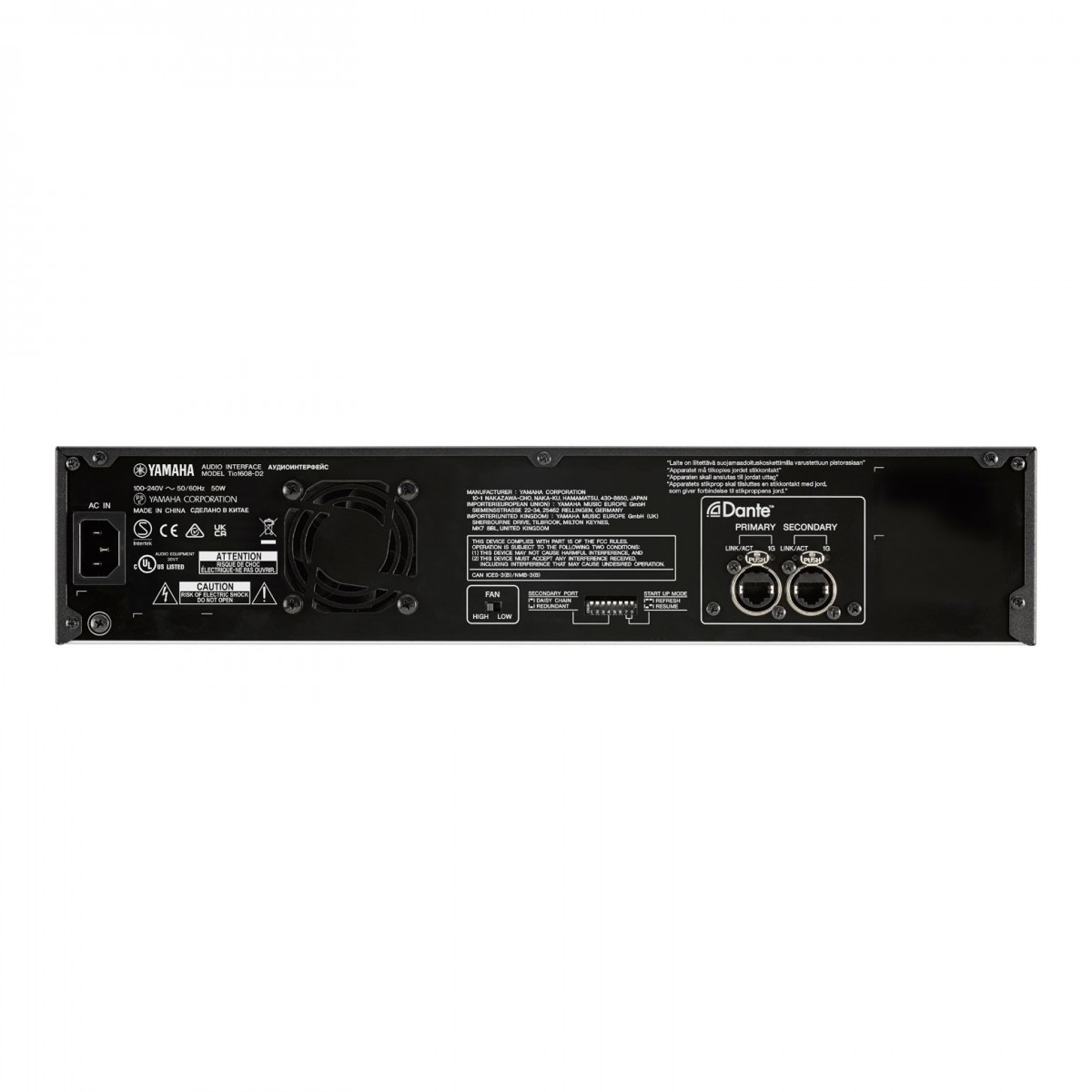

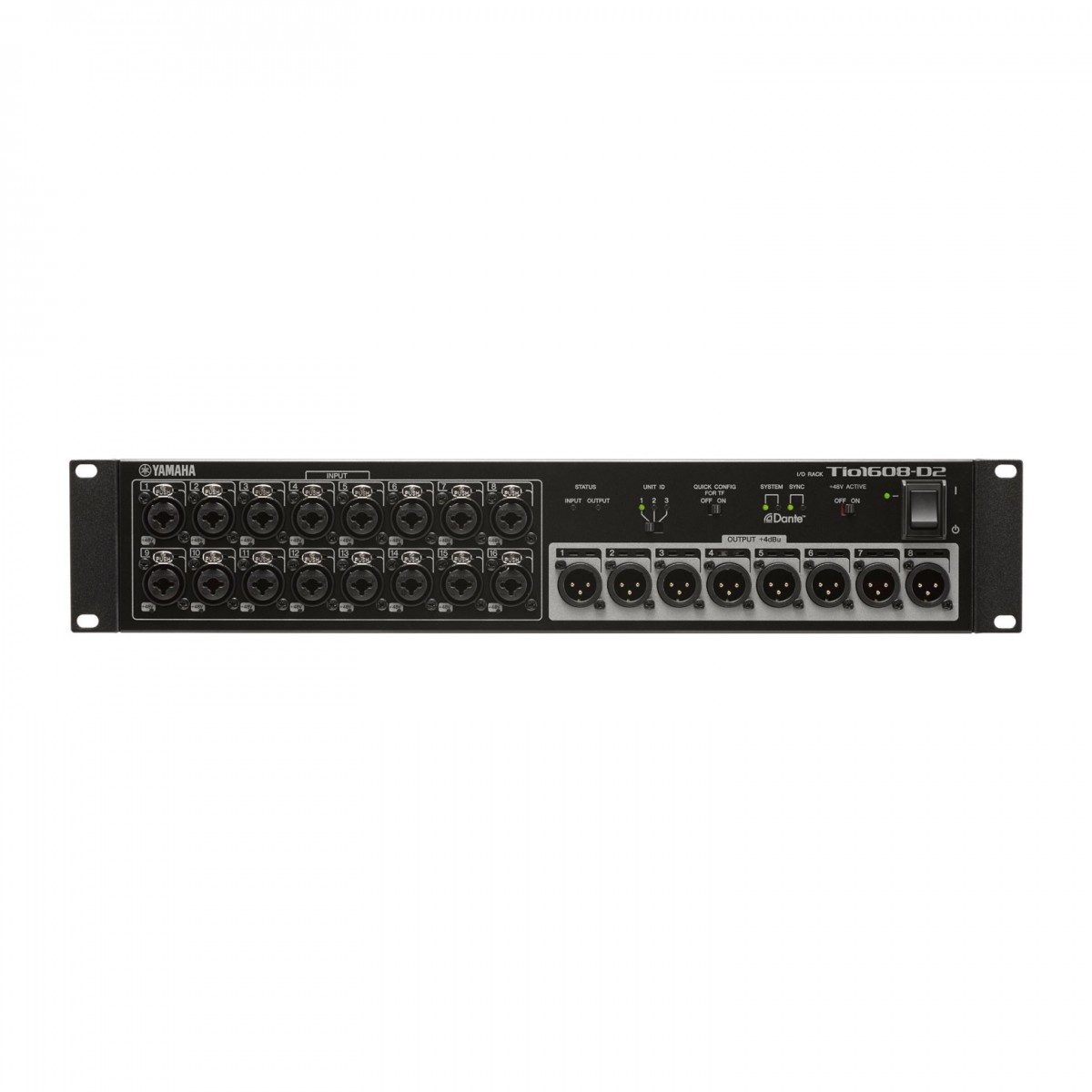

Yamaha TIO 1608-D2 Stagebox with Dante

The Yamaha TIO1608-D2 Stagebox with Dante is a versatile and high-definition stagebox that enhances the convenience of your console. Equipped with 16 mic/line inputs and 8 line outputs, this Dante-compatible I/O rack allows you to control gain remotely from TF Series and DM3 consoles, making it perfect for constructing a simple stagebox system.

The TIO1608-D2 is the ideal stagebox for use with TF Series or DM3, providing low-latency and high-quality sound transmission. By connecting the console and TIO1608-D2 units with a lightweight and durable CAT5e Ethernet cable in a daisy chain, you can enjoy a hassle-free setup without the need for time-consuming transport and installation. Utilizing the Dante High-Reliability Network Audio Protocol, the TIO1608-D2 offers low jitter, low latency, and high sampling accuracy. With little or no IT networking knowledge required, you can easily configure a high-performance Dante stagebox system. This stagebox also offers versatility and scalability, allowing it to be combined with other Dante-enabled equipment such as R Series I/O racks.

The TIO1608-D2 features recallable D-PRE preamplifiers, providing a consistent and natural sound throughout the entire system. Its simple and flexible input selection allows you to assign inputs to best suit your system setup, with the option to receive signals from multiple locations.

Dante-equipped stagebox

With the Dante High Reliability Network Audio Protocol, the TIO1608-D2 guarantees exceptional audio performance. Dante is renowned for its low jitter, low latency, and high sampling accuracy, making it the go-to choice for leading manufacturers and professionals in the sound reinforcement industry. You don’t need extensive IT networking knowledge to configure a high-performance Dante stagebox system with the TIO1608-D2. With the flexibility of the Dante network protocol, you can easily connect TF Series or DM3 consoles to various Dante-enabled equipment, such as R Series I/O racks.

Complement your console

Enhance the convenience of your console with the Yamaha TIO1608-D2 Stagebox. This Dante-compatible I/O rack is equipped with 16 mic/line inputs and 8 line outputs, providing you with versatile audio connectivity options. One of its standout features is the ability to control gain remotely from TF Series and DM3 consoles, allowing you to build a simple stagebox system. In combination with the optional NY64-D expansion card (sold separately), the TF Series can connect to up to three TIO1608-D2 units, while the DM3 can connect to a single unit. By connecting the console and stagebox with a lightweight, durable CAT5e Ethernet cable in a daisy chain, you can ensure low-latency, high-quality sound transmission without the hassle of analog snakes.

Pristine, recallable D-PRE preamps

Experience exceptional sound quality with the TIO1608-D2, thanks to its recallable D-PRE preamplifiers. These preamps, inherited from the TF Series, deliver a consistent, natural, and musical sound throughout your entire audio system. Meticulous attention to detail and quality is evident in the mechanical construction, circuit board layout, power supply, grounding, and parts selection of the TIO1608-D2.

Features

• 16-in, 8-out digital stagebox for live or studio sound applications
• Equipped with Dante network connectivity for fast, stable audio transmission
• Integration with Yamaha DM and TF-series mixers for quick and easy setup
• 16 mic/line inputs and 8 line outputs for simplifying wide-ranging audio setups
• Rapid and versatile input selection with all 16 inputs accepting signals from multiple locations
• Clean, high headroom D-PRE preamps with recallability for easy and consistent sound mixing
• Up to 96 kHz audio for pristine sound quality

Specifications

• Sample Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, selectable
• Signal Delay: Less than 1.3 ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25 ms (one way), Fs = 96 kHz; Less than 2.6 ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25 ms (one way), Fs = 48 kHz
• Total Harmonic Distortion: Less than 0.2% +4 dBu @ 20 Hz – 20 kHz into 600Ω, Gain = +66 dB / Less than 0.05% +4 dBU @ 20Hz – 20kHz into 600Ω, Gain = -6 dB, INPUT to OUTPUT, Fs = 88.2 kHz, 96kHz; Less than 0.1% +4 dBu @ 20 Hz – 20 kHz into 600Ω, Gain = +66 dB / Less than 0.05% +4 dBU @ 20 Hz – 20 kHz into 600Ω, Gain = -6 dB, INPUT to OUTPUT, Fs = 44.1 kHz, 48 kHz *Measured with a -18 dB/octave filter @ 80 kHz
• Dynamic Range: 108 dB
• Frequency Response: 20 Hz – 20 kHz
• Equivalent Input Noise: -128 dBu, Gain = +66 dB, Fs 96 kHz, 48 kHz *Measured with A-weighting filter
• Residual Output Noise: -86 dBu, Fs 96 kHz / -88 dBu, Fs 48 kHz, ST main off *Measured with A-weighting filter
• Crosstalk: -100 dB, adjacent INPUT/OUTPUT channels, Input Gain = -6 dB *Measured with a -30 dB/octave filter @ 22 kHz
• Heat Dissipation: 100 – 240 V, 50/60 Hz. 43.5 kcal/h
• Power Requirements: 100 – 240 V, 50/60 Hz
• Power Consumption: 50 W
• Dimensions (W x H x D): 480 x 88 x 364 mm (18.5 x 3.5 x 14.4″)
• Weight: 5.7 kg (12.6 lbs)
