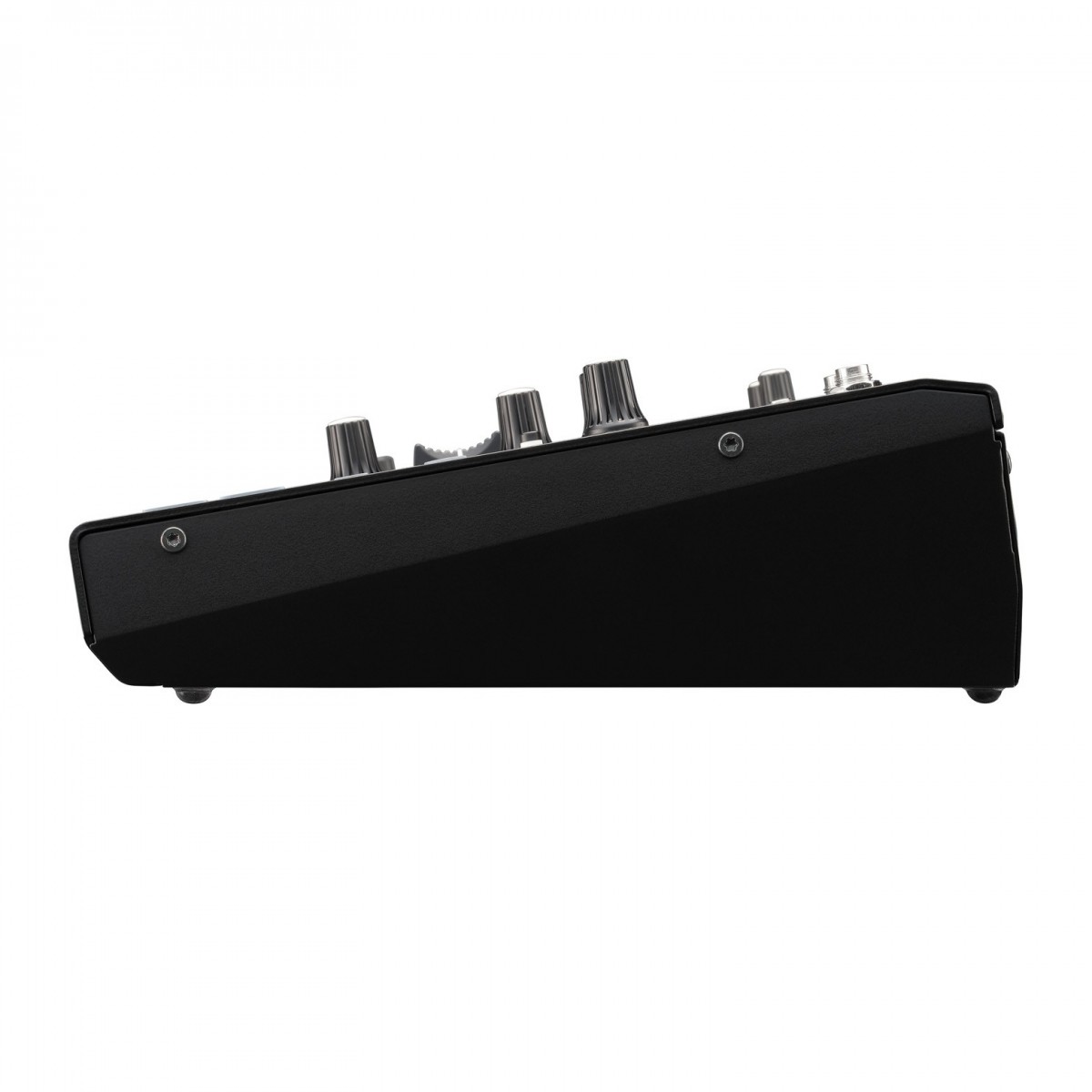

The Yamaha AG08 is a fully-featured streaming mixer and USB audio interface that’s perfect for content creators of all kinds, from streaming to podcasting and vlogs. The AG08 features two microphone input channels with phantom power for use with condenser microphones, perfect for capturing the voice of you and any guests or friends joining you on your platform. Combining these microphone channels with flexible and assignable stereo line channels that allow you to connect smartphones, guitars, keyboards, or computer audio across the rest of its eight channels.
Loaded with effects and extra functionality, this streaming mixer provides compression on both microphone channels, voice changer effects with control over pitch and formant, EQ, and reverb and delay to help define your sounds. There’s also an amp simulator on channel 2 that will give you an authentic sound for bass and guitars. All of these effects come with four preset slots to store, recall, and load up at a moment’s notice. The AG08 also provides six assignable sound pads to launch pre-recorded sound effects, trimmed to exactly where you want them.
Comprehensive I/O
The Yamaha AG08 features two microphone input channels and six assignable stereo line channels for incredible signal routing flexibility. You can set up two condenser microphones, a guitar, a keyboard an electronic drum kit, a smartphone or tablet, external media players, and so much more. However, the connectivity doesn’t stop there. Thanks to a built-in USB audio interface and loopback functionality, you can assign computer audio, like audio from video games, video playback, or voice calls to mix them with the rest of your audio sources.
Engaging effects
Sometimes being a great content creator requires switching things up a little, and whether you’re musically inclined, or just want to entertain, the AG08 offers professional-sounding effects that you can customise in the AG08 Controller app to expand its functionality. Compression and EQ will help you give your voice the sound and presence it needs. Meanwhile, a voice changer with adjustable pitch and formant parameters will help you create some unique effects, robotic voices, and so much more. Then, adjustable reverb and delay will add space and depth to your voice, especially perfect when performing music. These effects chains can be stored as presets, with memory for up to four at once to be loaded whenever you need them. Channel 2, instead of the voice changer, offers access to a Hi-Z input and amp simulator, perfect for electric guitars or bass. Plus, six sound pads with assignable samples will let you play back sounds chosen by you whenever you want.
What’s in the box
- 1 x Yamaha AG08 Streaming Mixer
- 1 x AC adapter PA-150B
- 1 x USB 2.0 cable (1.5 m)
- 1 x Quick Guide
- 1 x Safety Guide
- 1 x Wavelab Cast Download Information
- 1 x Cubase AI Download Information
Features
- Eight-channel mixer ideal for livestreaming, videography, podcasting, and content creation
- Highly flexible and customisable connectivity ideal for any streaming setup
- Two combo mic/line inputs on first two channels with dual simultaneous headphone outputs
- Switchable phantom power on Channels 1 and 2 for connecting condenser microphones or DI boxes
- Four effects presets for Channel 1
- Hi-Z input mode on Channel 2 perfect for guitars or bass
- Three stereo channels with assignable faders and switchable line/USB input
- Internal USB audio interface captures audio via USB for ease of use
- Loopback functionality lets you play back computer audio for gaming or voice calls
- 3.5 mm minijack input and output on stereo channel 7/8 for connectivity with external devices
- Monitor outputs with XLR and TRS formats, and TRS mix outputs
- Six sound pads for storing pre-edited samples in real-time
- Incredible sound quality from improved internal circuitry
- 24-bit, 48 kHz multi-channel audio recording and playback with ASIO and WDM drivers
- Broad range of high-quality DSP effects for voice and sound manipulation
- Voice changer on Channel 1 offers adjustable pitch and formant
- Amp simulator effect on Channel 2 for adding punch and distortion to guitars or bass
- Compression, EQ, Reverb, and Delay on Channels 1 and 2
- Ducker effect adjusts volume of stereo channels based on Channels 1 and 2 input levels
- Maximiser effect boosts your overall mix for mastering-quality consistency and volume
- AG08 Controller App compatible with Windows, Mac and iOS for in-depth control of settings
- High-quality 60 mm faders and mute buttons per input channel
- Footswitch compatibility lets you quickly assign and activate settings
- Connects to PC via USB-C for high-quality and low latency transfer
- Supports connection to iOS devices through Apple Camera Adapter and external USB power supply
- Android connectivity from 3.5 mm minijack inputs and outputs
- Includes Cubase AI, WaveLab Cast, and Cubasis LE for audio recording, editing and music production
Specifications
- Input Channels:
- Mono (Mic/Line): 2 – CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8”) stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously
- Stereo (Line): 3 – CH3/4: LR Stereo Phone, CH5/6: LR Stereo RCA/3.5 mm stereo mini (AUX), CH7/8: 4-pole mini in/out (TRRS)
- Aux: 1 – Stereo mini
- Smartphone: 1 0 4-pole mini input/output (TRRS)
- USB: 1 – USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, FROM DAW)
- Output Channels:
- Phones: 2 – CH1: 6.3 mm (1/4″) Stereo / HEADSET mini PHONES *Cannot be used simultaneously, CH2: PHONES
- Smartphone: 1 – 4-pole mini input/output (TRRS)
- MONITOR OUT: 2 – LR Stereo: XLR, 1/4 TRS Phone
- STEREO OUT: 1 – MIX: LR stereo TRS Phone
- USB: 1 – USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, TO DAW), 8 Channels Direct Out *In Windows environment, ASIO channel and USB 2.0 exist independently. Please check the block diagram for details.
- Bus: 4 Stereo
- Functions: MUTE button x 5, CH1 FX preset button x 4, Sound pad x 6, +48 V phantom power x 2, GUITAR(HI-Z) x 1, PAD x 2, GAIN HIGH/LOW x 1, LINE/USB x 3, STREAMING ON/OFF x 3, CUE x 1, MIX MINUS (CH1, 2)
- DSP Effects: Voice Changer, Amp Simulator, COMP, EQ, REVERB (SPX Reverb), Delay, Ducker, Maximizer *Detail is operated on AG Controller
- USB Audio: 8 IN / 14 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
- USB DC Power Input: 1 – Type-C, 5 V DC, 1.5 A
- Power Requirements: DC 12 V, 1.5 A/USB-C 5 V, 1.5 A
- Power Consumption: Max. 7.5 W
- Dimensions (W x D x H): 290 x 88 x 222 mm (11.5″ x 3.5″ x 8.8″)
- Weight: 2.2 kg (4.9 lbs)
- Operating Temperature: 0 to +40° C
