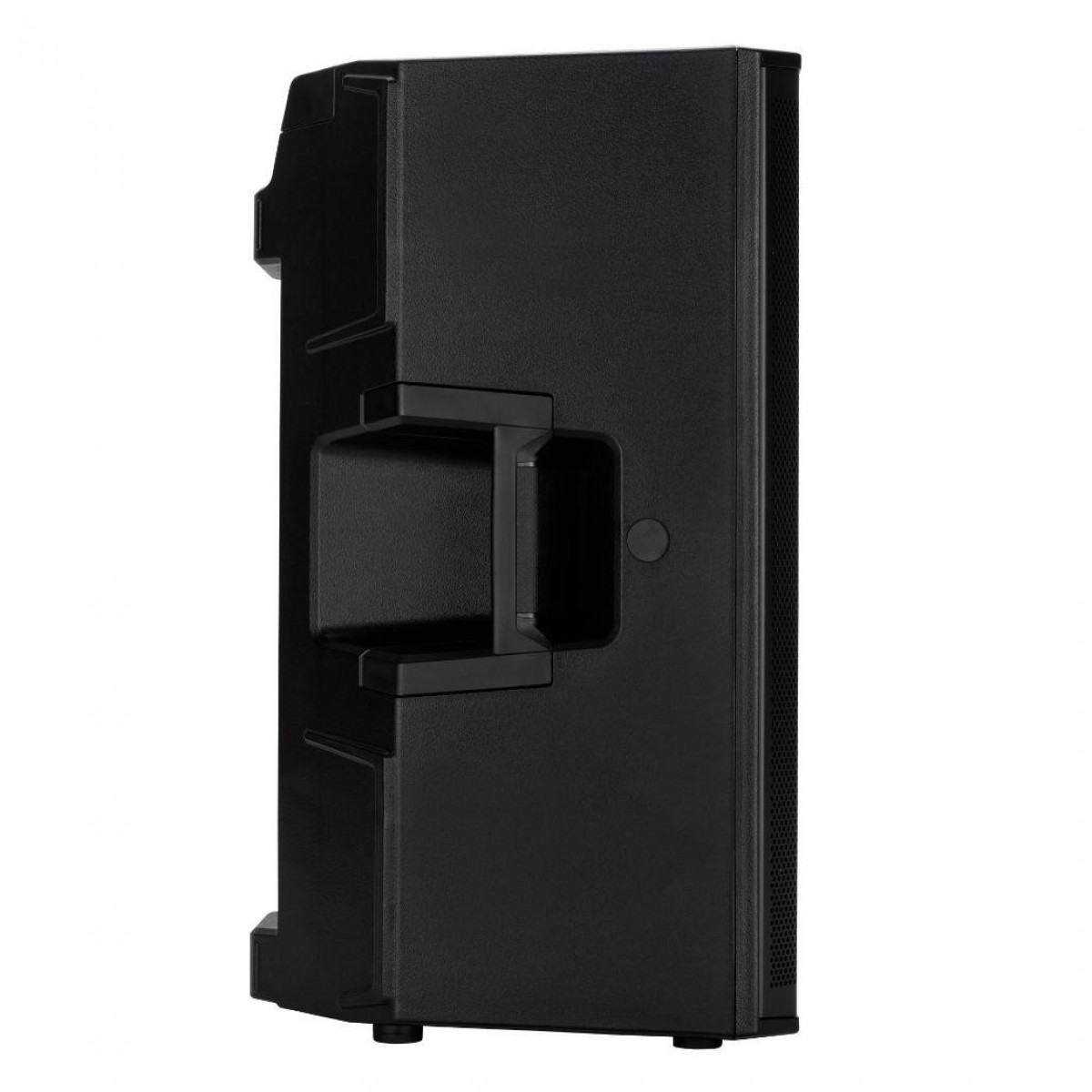

RCF ART 912-AX

Whilst the ART 912-AX has a great foundation in its powerful amplification, well-designed drivers, and excellent preamps, its Bluetooth connectivity adds another layer of functionality and convenience. Capable of streaming stereo audio across two channels, this PA speaker is great for playing music and backing tracks directly off your phone before shows. App control also via Bluetooth allows you to set up, mix, and adjust settings on the fly from anywhere in the venue too, directly from any iOS or Android device. Plus, convenient speaker pairing over Bluetooth with individual zone control and stereo configuration options adds even more options for building an entire sound system.

Innovative new DSP

The 912-AX features two proprietary DSP technologies, with RCF’s own take on linear phase FiR crossovers, FiRPHASE providing a smooth, unnoticeable crossover that maintains clarity and avoids phase distortion. On top of this, their Bass Motion Control technology helps to manage the movement of the low-frequency woofer, preventing distortion and phase smearing from overextension.

Features

• 12-inch active PA speaker with Bluetooth functionality
• Built-in six channel digital mixer with EQ, compression, reverb, and ducking
• Touch panel and app control for intuitive operation
• 1.75″ compression driver and 10″ woofer deliver powerful, balanced sound
• Maximum sound output of 130 dB ideal for medium-sized venues
• 2100 W of Class D amplification for efficient power consumption
• THAT Corporation designed combo preamps for connecting instruments or mixers with clean sound
• Phantom power for directly powering condenser microphones
• Minijack stereo line input provides connectivity with other external devices
• Bluetooth stereo streaming and speaker pairing options
• True Resistive Waveguide provides consistent directivity and great imaging
• FiRPHASE DSP offers smooth crossover with no phase distortion or latency
• Bass Motion Control technology adds clarity and low-frequency extension without phase shifting

Specifications

• Frequency Response: 50 Hz – 20000 Hz
• Max. SPL @ 1 m: 130 dB
• Horizontal Coverage Angle: 100°
• Vertical Coverage Angle: 60°
• Compression Driver: 1 x 1.0″, 1.75″ voice coil
• Woofer: 12″, 2.5″ voice coil
• Input Signal: Balanced/Unbalanced
• Input Connectors: Combo XLR/Jack
• Output Connectors: XLR
• Crossover Frequency: 1600 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Colour touch panel, data entry/volume encoder, dedicated app for iOS and Android
• Total Power: 2100 W Peak, 1050 W RMS
• High Frequency Power: 700 W Peak, 350 W RMS
• Low Frequency Power: 1400 W Peak, 700 W RMS
• Cooling: Convection
• Connections: VDE
• THD + N, 20 dB gain, 0 dBu Out: 0.005% A-Weighted
• Processing Channels: 6
• Signal Processing: 24-bit
• A/D-D/A Conversion: 32-bit @ 48 kHz
• Dynamic Range: 110 dB
• Compressors: Compressors on Mic/Line Channel 1 and Channel 2 inputs
• Channel EQ:
  • 2 shelving 1
  • 3 Band EQ: High and low band shelving, mid band peak on input
  • 5 Band EQ: 4 full parametric, 1 high shelving and HPF 24 dB/Oct on amplifier and main output
• Send Effects: 1
• Main Output Type: Mix Out, Crossover Out, with RCF subwoofer presets, stereo output, Channel 1 link output
• Cabinet Material: PP Composite
• Hardware: 1 x M10 Top, 1 x M10 each side
• Handles: 1 Top, 1 each side
• Pole Mount/Cap: Yes
• Grille: Steel
• Colour: Black
• Height: 685 mm/26.97 inches
• Width: 423 mm/16.65 inches
• Depth: 430 mm/16.93 inches
• Weight: 22 kg/48.5 lbs

Inputs

• Mic: 2
• Remote Controlled Storable Gain: Yes
• Gain Range: 0 dB – 42 dB
• Input Noise Level: -114 dBu A-Weighted
• Mic Input Impedance: 6 kΩ
• Low Cut: 20 Hz – 400 Hz
• Phantom Power: Yes, +48 V
• Mono Line: 2
• Gain Selection: 0 dB – 22 dB
• Line Input Impedance: 21 kΩ
• A/D Dynamic Range: 114 dB
• Stereo Line: 1
• Gain Selection: 0 dB – 10 dB
• Stereo Line Input Impedance: 13 kΩ

Outputs

• Main Mix: 1
• Main Out Impedance: 150 Ω
• Main Out Level: 22 dBu
• D/A Dynamic Range: 114 dB
