Yamaha DXS15XLF 15″ Active Subwoofer

The Yamaha DXS15XLF Powered Subwoofer delivers tight, deep, pumping and thunderous bass all the way down to 40Hz. The updated model provides up to 136dB maximum SPL with 1600W of peak power. Thanks to the state-of-the-art DSP, the DXS15XLF produces clear, powerful and distortion-free bass. With built-in D-XSUB processing, the Yamaha DXS15XLF allows you to extend the frequency response even lower to add even more thunderous bass to your DJ or live performance. The DXS15XLF also features durable Polyurea coating which is extremely damage resistant, providing optimum protection to ensure durability for the subwoofer. The DXS15XLF compresses the features of the DXS18XLF into a smaller and lighter package

D-XSUB Bass Processing For Low-End Management

The Yamaha DXS15XLF features powerful D-XSUB processing that gives you the flexibility to control the low frequencies, and total control over your bass. The subwoofer features different modes that change the frequency response and characteristics. The NORMAL mode gives you a well-balanced low-end frequency response, while BOOST will focus more on bass and provide a tighter low-end. The new XTENDED LF mode allows you to add even more thunderous bottom-end by dropping the low-end frequencies even further, a function unheard of from smaller cabinets. With this control over your sound, the DXS15XLF ensures your performances go exactly as planned.

Cardioid Mode & Crossover Switching

The newly developed cardioid mode allows you to direct your bass towards your audience. This special function decreases stage-side sound pressure while increasing the bottom-end output directed towards the audience. This provides a cleaner stage monitoring environment whilst giving the audience that much needed bass experience. Usually controlling the output direction of a system’s low-end is difficult as the low frequencies can be omnidirectional. However, the Yamaha DXS15XLF has managed to make sure your audience feel those bass frequencies. The cardioid mode is ideal for setups consisting of 2 or more DXS subwoofers. The DXS15XLF subwoofer also features crossover switching which allows you to match DXS subwoofers with any of Yamaha’s full range powered speakers. Simply select the cutoff frequency that is best suited to the models.

Powerful & Clean Low-End

The Yamaha DXS15XLF Subwoofer features high-efficiency 1020W class D amplifiers that are capable of producing a maximum SPL of 136dB, all with exceptional clarity and accuracy. The custom designed transducer delivers a well-defined and powerful low-end. Another feature that keeps your bass sounding super clean is the band-pass enclosure which reduces unwanted vibrations and noise. The durable plywood enclosure combined with the band-pass enclosure allows the subwoofer to achieve a higher SPL. It is acoustically optimised for maximum sound quality.

Compact, Portable & Rugged Design

The DXS15XLF manages to squeeze the features of the DXS18XLF into a more compact, lightweight and portable package, making it ideal for the mobile DJ, musician and sound engineer. The rugged enclosure is coated in durable Polyurea with extremely high damage resistance that protects the cabinets from damage such as scratches, bumps or severe weather conditions, providing extended reliability and durability. Additionally, the DXS15XLF also features side handles for easy transportation. For added flexibility, the DXS15XLF features a dual pole socket that accommodates 35mm diameter speaker poles and M20 screws.

Features

• 15” powered subwoofer with 1020W class-D power amplifier
• High output power
• DSP processor / LCD screen
• 40Hz – 150Hz frequency range is ideal for small to medium-sized rooms
• D-XSUB processing delivers total management of the lower frequencies (NORMAL, BOOST, XTENDED LF modes)
• XTENDED LF mode drops the low-end frequencies even further
• Advanced FIR-X tuning
• Cardioid mode for bass management onstage
• Selectable X-OVER (80Hz/100Hz/120Hz) for matching with other Yamaha speakers (crossover switching)
• Durable Polyurea coating with extremely high damage resistance to protect the cabinet from scratches, bumps or severe weather conditions
• Dual pole socket that accommodates 35mm diameter speakers poles and M20 screws

Specifications

• Speaker Type: 15” powered subwoofer, bass-reflex
• Frequency Range: 33Hz – 150Hz (-10dB)
• LF Driver: 15” cone with 4” voice coil (ferrite magnet)
• Sampling Frequency Rate: 96kHz and FIR filter
• AD/DA Converters: 96kHz AD/DA
• Maximum Output Level: 136dB SPL (1m, on axis)
• Power Rating:
  • Dynamic: 1600W
  • Continuous: 1230W

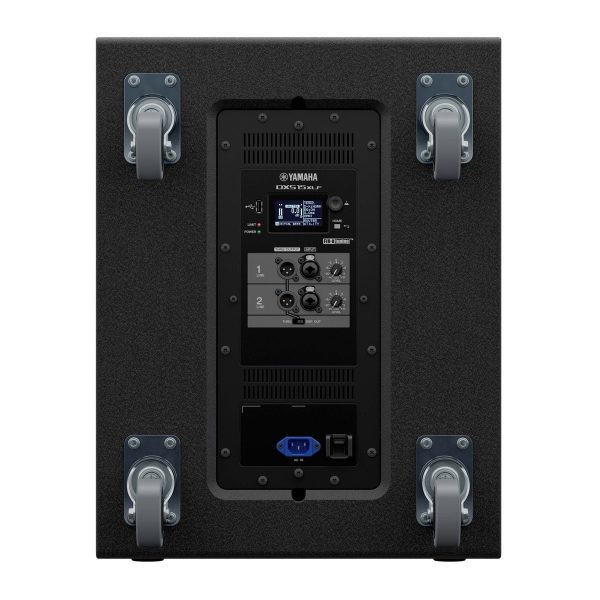

• I/O Connectors:
  • Analog I/O:
    • 2 x XLR-1/4” combo inputs (max. +24dBu input, 20k Ohms)
    • 2 x XLR3-32 outputs
    • CH1/2 THRU or DSP OUT
  • Other I/O: USB 2.0 host 5V 500mA for USB memory DATA storage/load
  • Power I/O: 1 x IEC AC inlet (V-Lock)
• Amplifier Class: Class-D
• Cooling: Fan cooling (variable speeds)
• Power Consumption: 40W (idle), 180W (1/8)
• Handle: 2 x Side-mounted die-cast aluminium handles
• Pole Socket: 35mm diameter, 80mm depth (25mm M20 threaded depth)
• Dimensions: 450mm x 587mm x 600mm / 17.7” x 23.1” x 23.6” (W x H x D)
• Net Weight: 40kg / 88.2lbs
