Description

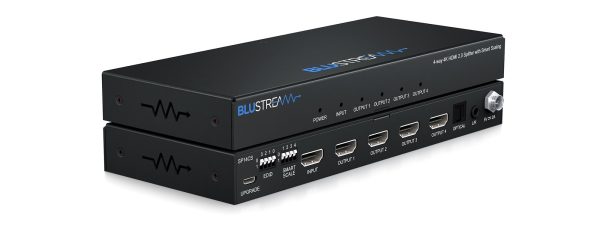

Our SP14CS 4K HDMI 2.0 splitter distributes a single HDMI source to four simultaneousĀ outputs with both digital (S/PDIF) and analogue audio breakout.
The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4 with automatic video down conversion on each output.
Key Features
Features 1x HDMI input that is replicated to 4x HDMI outputs
Supports HDMI 2.0 18Gbps specification including HDR
Supports up to 4K UHD 60Hz 4:4:4
Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
Advanced EDID management
HDCP 2.2 Support
Specifications

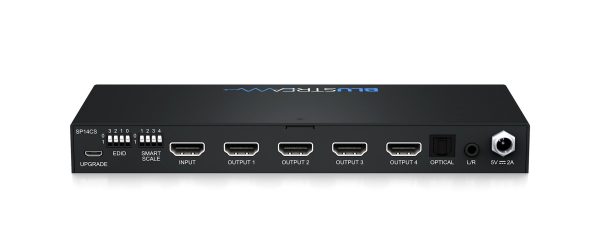

Video Input Connectors: 1x HDMI Type A
Video Output Connectors: 4x HDMI Type A
EDID: 4-PIN DIP switch
Smart Scale: 4-PIN DIP switch
Audio Output Connectors: 1x Digital (Optical), 1x Analogue audio L/R (3.5mm stereo Jack)
Dimensions (W x D x H): 203mm x 84mm x 23mm , without feet
Shipping Weight: 0.8kg
Operating Temperature: 32Ā°F to 104Ā°F (0Ā°C to 40Ā°C)
Storage Temperature : -4Ā°F to 140Ā°F (-20Ā°C to 60Ā°C)
Power Supply: 5V/2A DC
Box Contents
1x SP14CS
1x 5V/2A DC power supply
1x Mounting Kit
1x Quick Reference Guide
